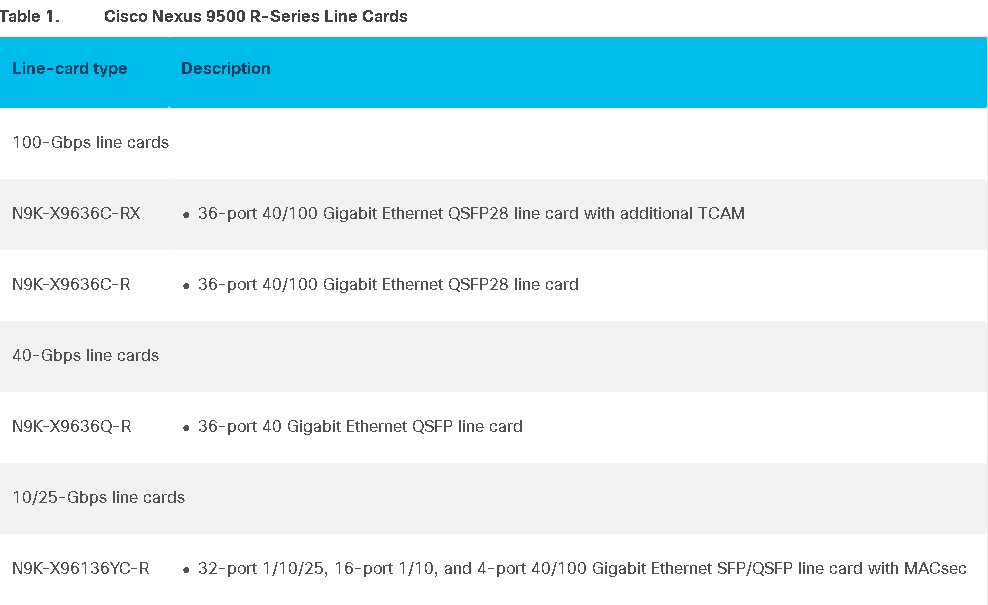

These chassis support the Cisco Nexus 9500 R-Series line cards and fabric modules, delivering up to 9.6 Terabits per second (Tbps) per slot, for a total of 76.8-Tbps in the 8-slot chassis. Both chassis support line cards that offer 100-, 40-, 25-, 10-, or 1-Gigabit Ethernet ports now and will support higher port speed line cards in the future.

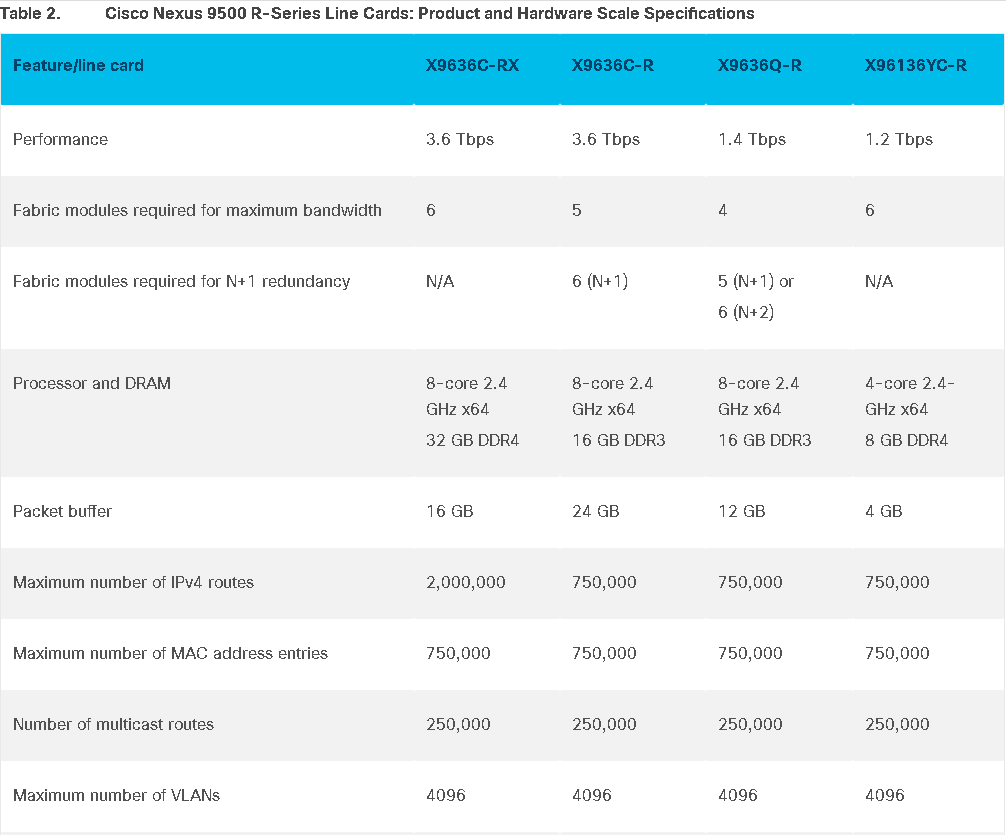

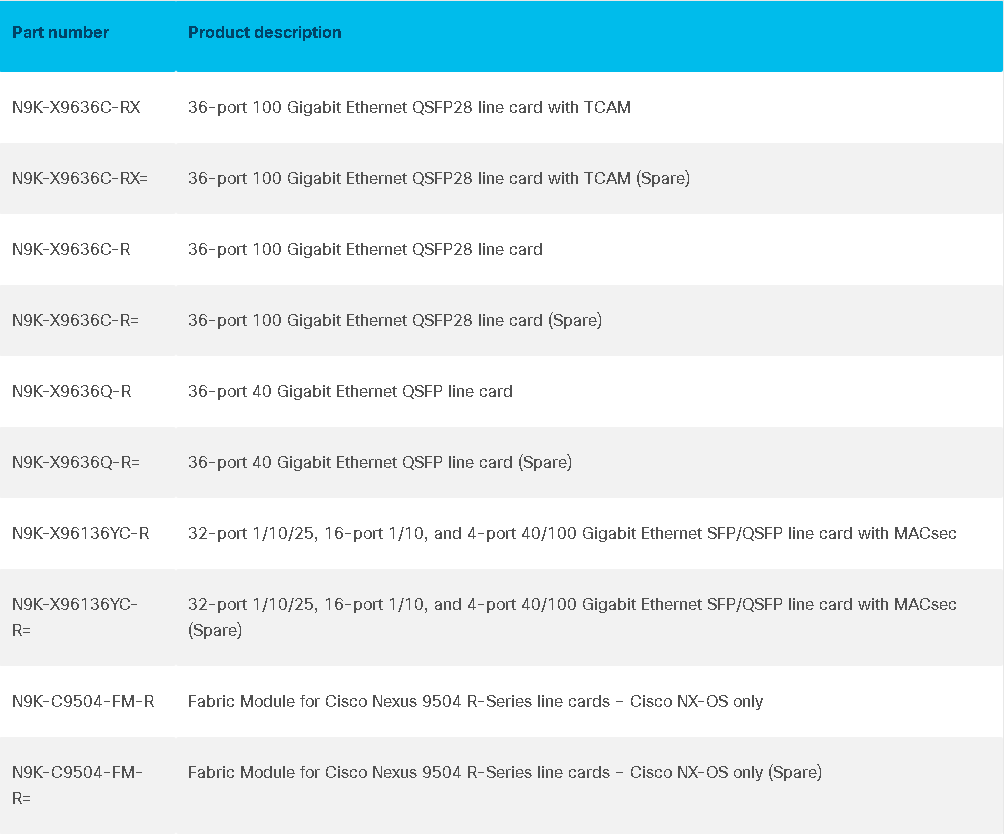

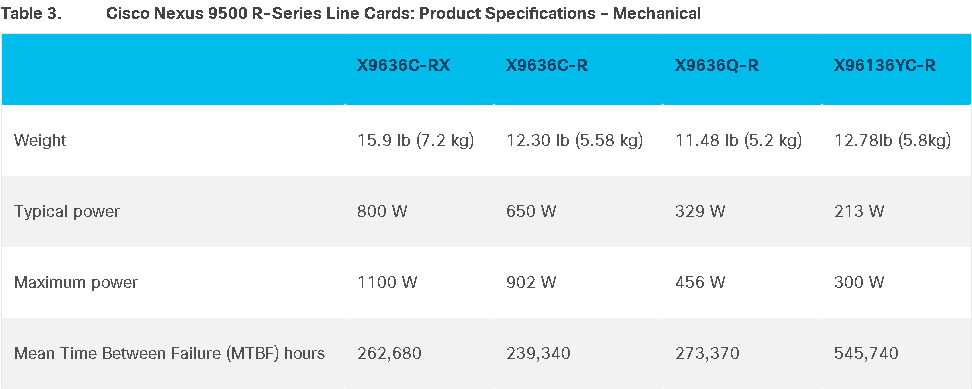

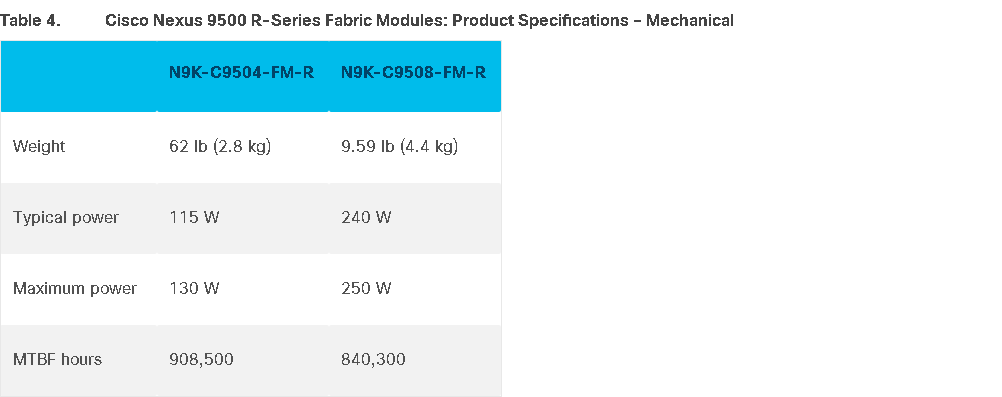

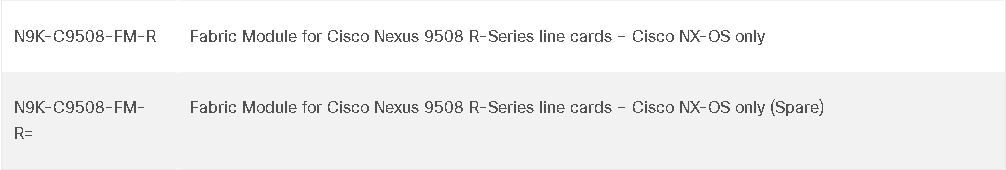

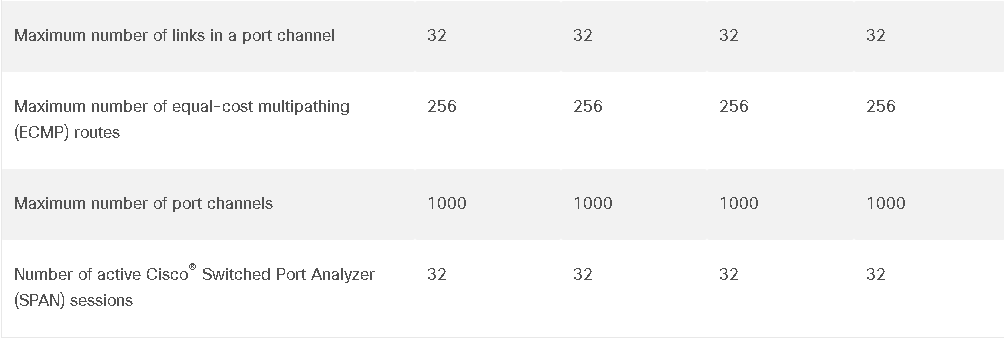

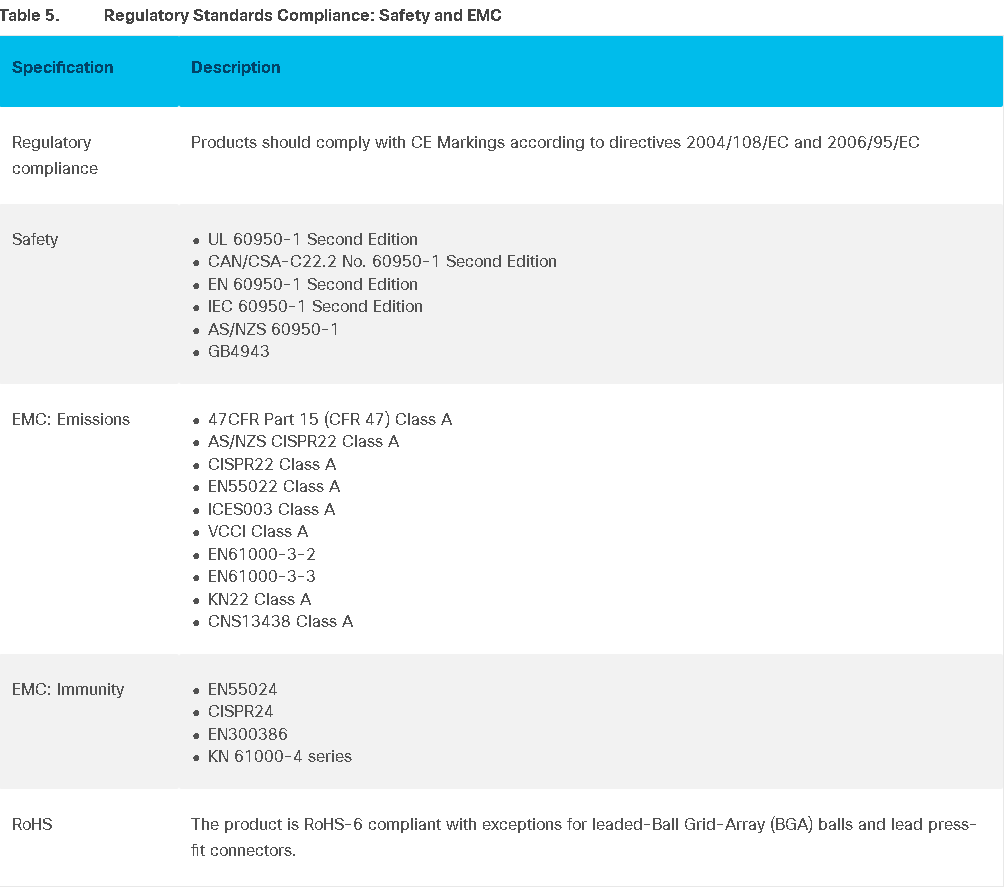

The Cisco Nexus 9500 platform is designed as a Clos fabric that interconnects each line card directly with each rear-mounted fabric module. All traffic between the line cards is load balanced across all fabric modules providing optimal bandwidth distribution within the chassis. This load-balancing capability provides enhanced system reliability and redundancy. The switch continues to operate even in the event of a loss of a fabric module, albeit at a lower capacity, as the remaining fabric modules continue to provide switching capacity to the line cards. Some of these line cards can connect to 1 or 2 additional fabric modules to also provide N+1 or N+2 redundancy. All Cisco Nexus 9500 platform R-Series line cards support deep buffers and some line cards support large tables enabling various use cases. |
